Purpose

Today’s post is modest but focused: debugging.
In yesterday’s post, I created a workflow that loaded an arbitrary number of images, processed them with CUDA kernels, and transferred the results back to CPU memory. I also verified the GPU-side behavior using Nsight.
However, the output looked strange—although the images appeared grayscale, there were clear artifacts.
This article walks through how I investigated and fixed the problem.

Refactoring Key Functions

Before diving in, I rewrote yesterday’s code manually instead of copy-pasting it.
Since I’m still learning CUDA, I find value in rewriting by hand: it helps me catch typos, reinforce the function logic, and internalize naming conventions.
However, rewriting utility functions each time can be tedious. So I decided to extract some code into a reusable file.
I created a file called utils/utils.hpp and moved the utility functions there, specifically ImageStocker and ZeroPadding from the previous program.

// Zero fill function
std::string ZeroPadding(int digits, int num)
{
    std::ostringstream oss;
    oss << std::setw(digits) << std::setfill('0') << num;
    return oss.str();
}

// Small Image Load and Stock class
class ImageStocker
{
public:
    ImageStocker(std::string dir, int count)
    {
        for (int i = 1; i <= count; i++)
        {
            std::string imgPath = dir + "/img_" + ZeroPadding(2, i) + ".png";
            std::cout << "Image Path: " << imgPath << std::endl;
            cv::Mat img = cv::imread(imgPath);
            if (img.empty()) {
                printf("failed to load image\n");
                break;
            }
            m_images.push_back(img);
        }
    }
    int NumImages()
    {
        return m_images.size();
    }
    cv::Mat Get(int id)
    {
        if (NumImages() <= id)
        {
            std::cout << "m_images.size() <= id" << std::endl;
            return cv::Mat();
        }
        return m_images[id];
    }

private:
    std::vector<cv::Mat> m_images;
};

Including this header keeps the .cu file more focused on its core logic.

Investigation

Let’s begin the investigation.
Before diving into code, I tried to form a hypothesis based on the output.

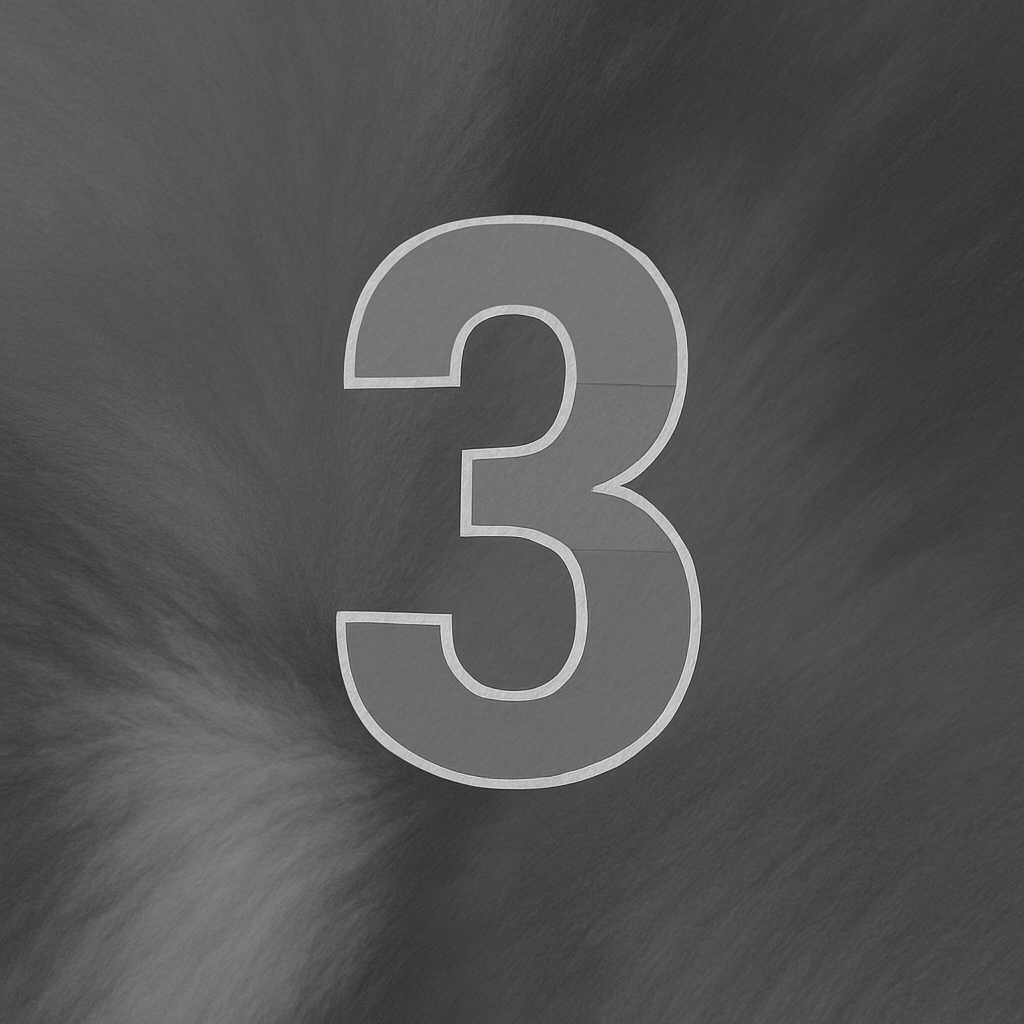

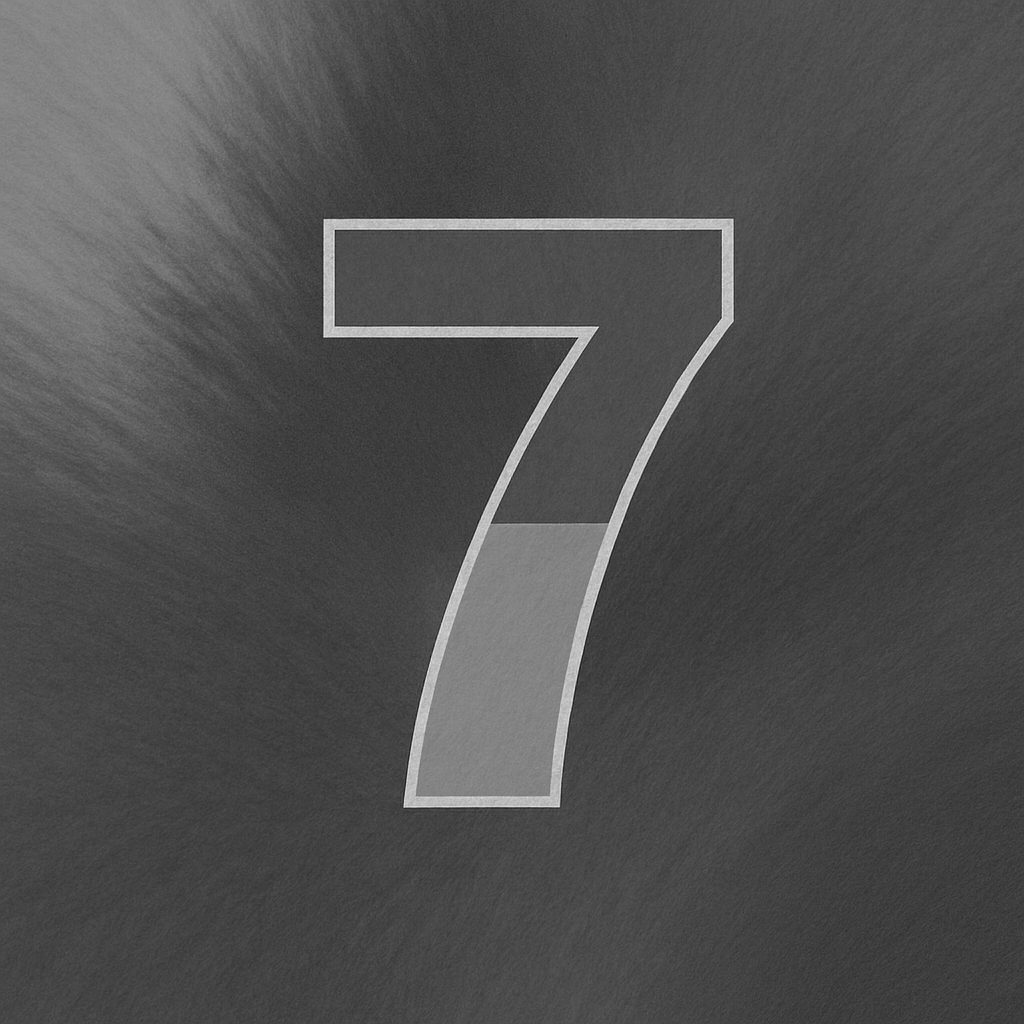

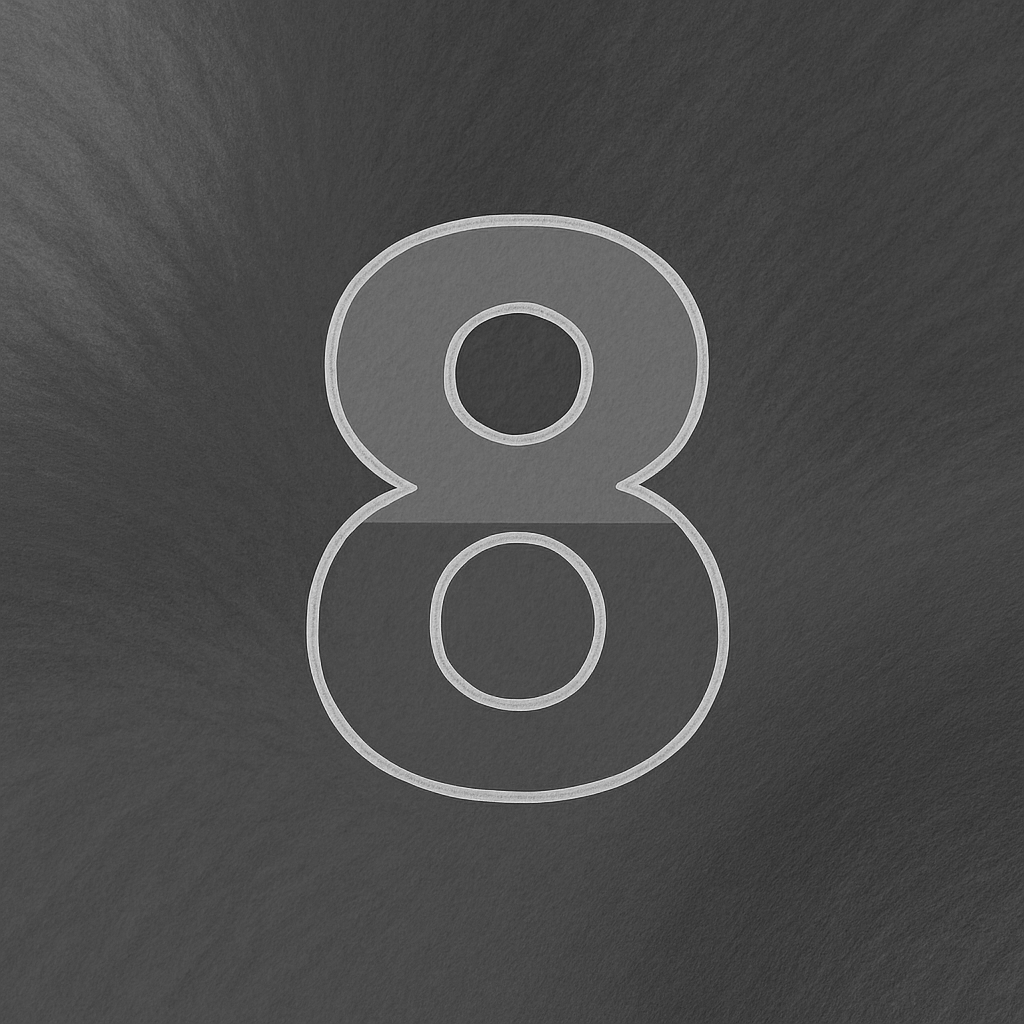

Let’s revisit one of the “broken” images from yesterday’s run. It has some notable characteristics:

  • The image structure is intact
  • All pixels are rendered
  • It appears grayscale

The structure is intact

We can still recognize the number displayed at the center of the image, meaning the layout isn’t corrupted.
This ruled out common byte-level errors, such as stride misalignment or incorrect bit-depth assumptions (e.g., 24-bit vs. 32-bit).
In such cases, you might expect segmentation faults or visually shifted pixels.
Here, the image contents imply that memory allocation, referencing, and writing are all working as expected.

All pixels are rendered

If there were transfer errors or processing stopped mid-way, you might see blank or partial images.
In this case, though, every pixel seems touched—so it’s likely not a partial failure.

It appears grayscale

A total failure would produce solid black or white images.
This one clearly has color variation.

Putting this together, we can assume that memory allocation, host-device transfers, reconstruction via cv::Mat, and image saving were all correct.
So the root cause likely lies in how the color conversion was computed.

Root Cause Analysis

Looking back at the CUDA kernel, the bug was quickly spotted:
The formula to calculate grayscale used multiplication instead of addition.

__global__ void grayscaleKernel(cudaTextureObject_t texObj, unsigned char* out, int width, int height)
{
    int x = blockIdx.x * blockDim.x + threadIdx.x;
    int y = blockIdx.y * blockDim.y + threadIdx.y;
    if (x >= width || y >= height) return;

    uchar4 pixel = tex2D<uchar4>(texObj, x, y);
    unsigned char gray = (pixel.x * pixel.y + pixel.z) / 3; // Bug here!
    out[y * width + x] = gray;
}

This should have been:

unsigned char gray = (pixel.x + pixel.y + pixel.z) / 3;

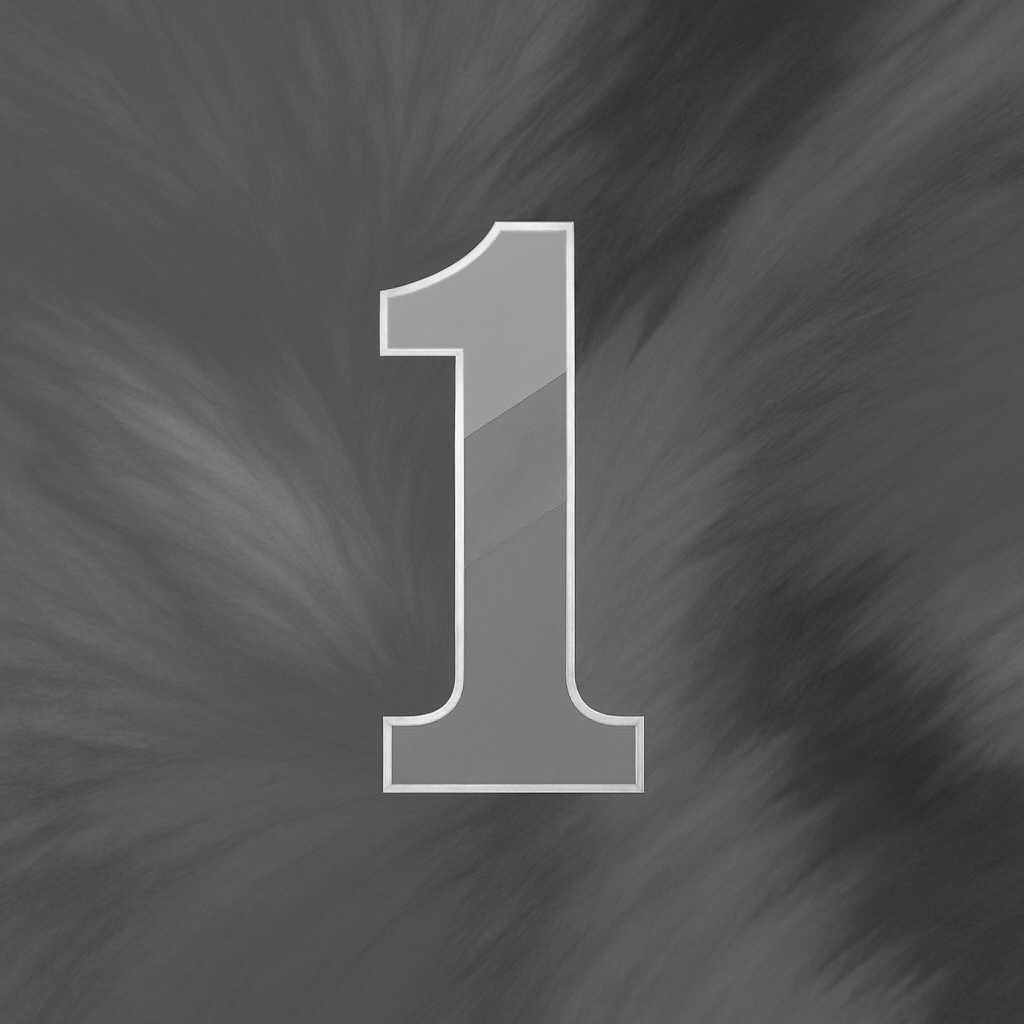

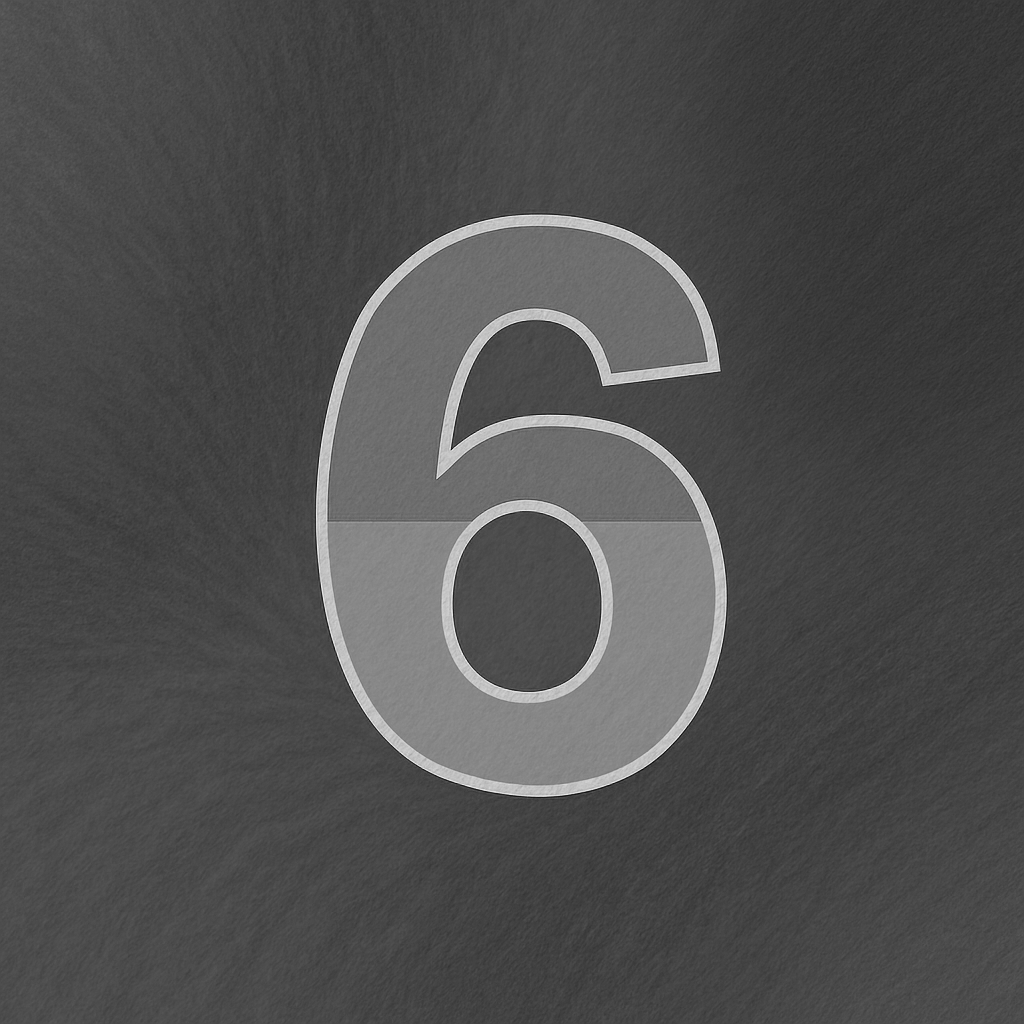

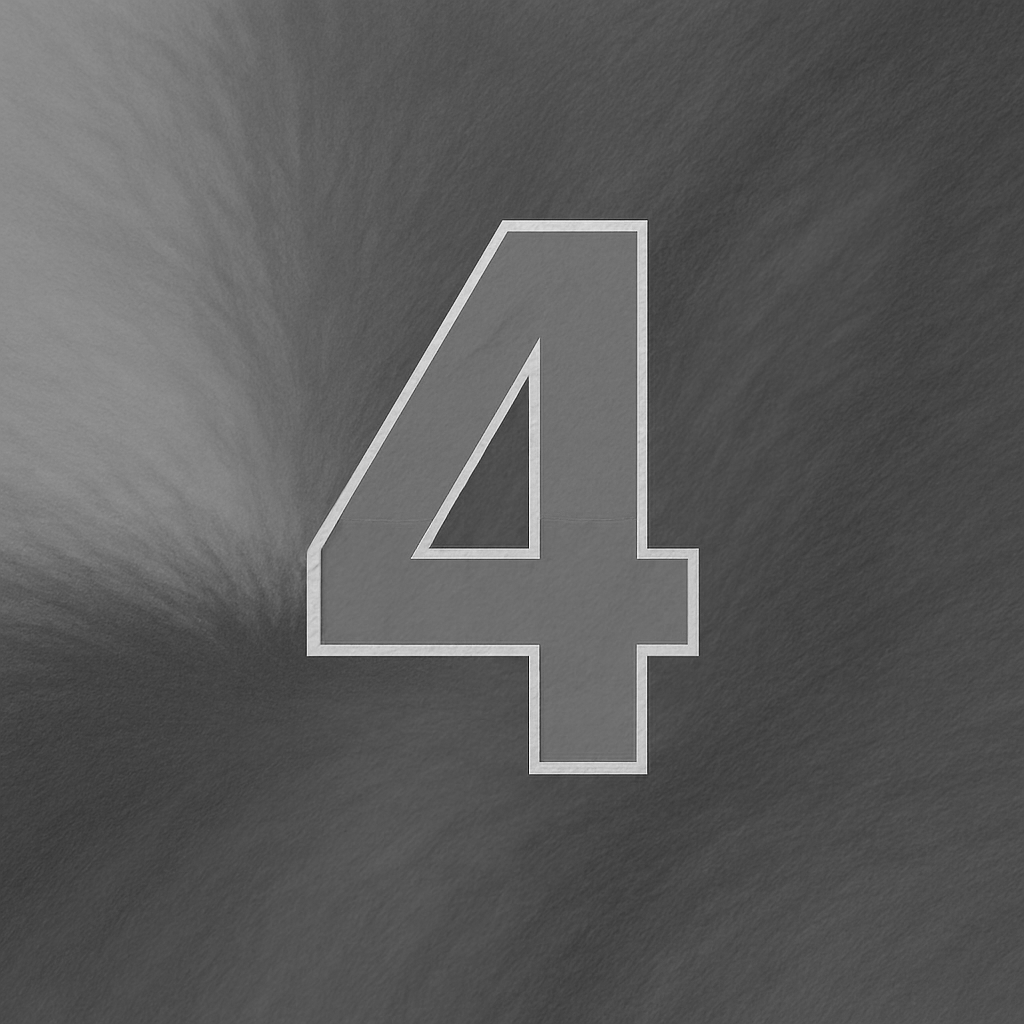

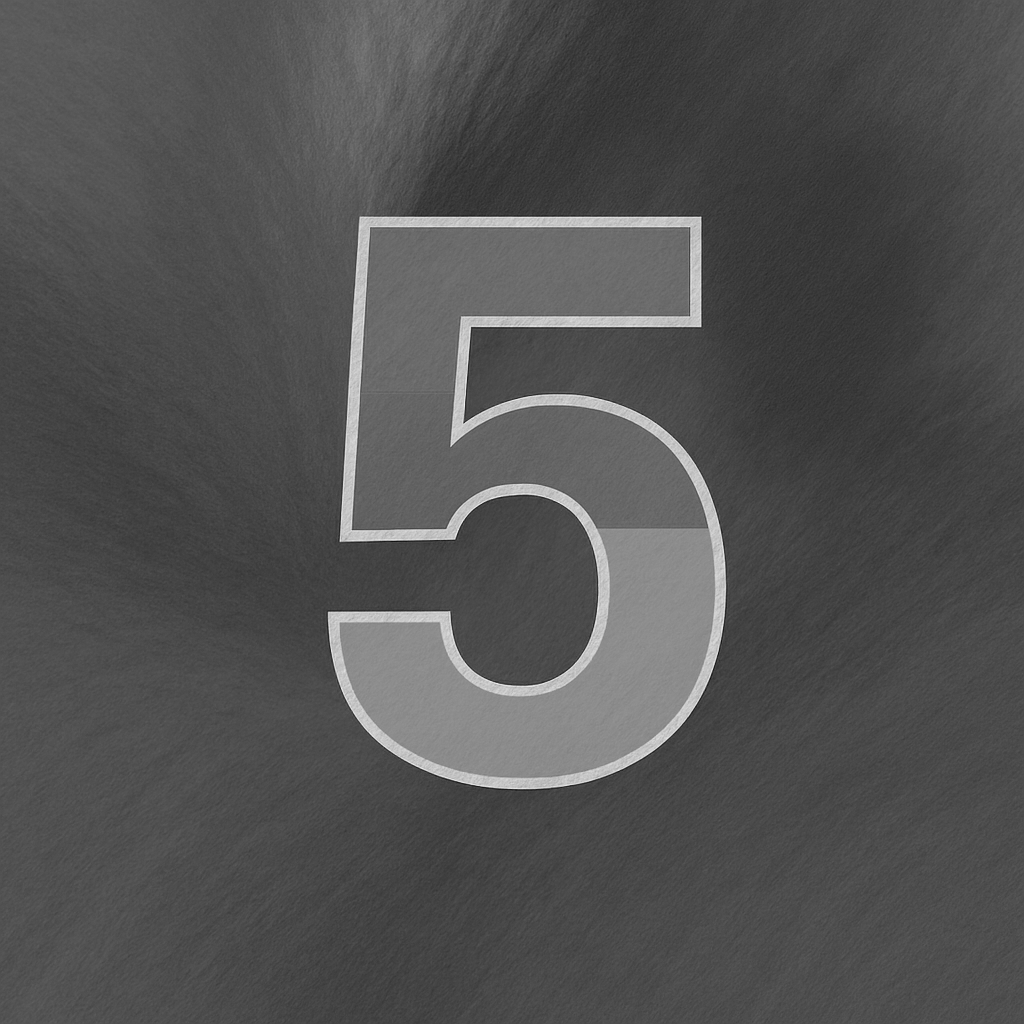

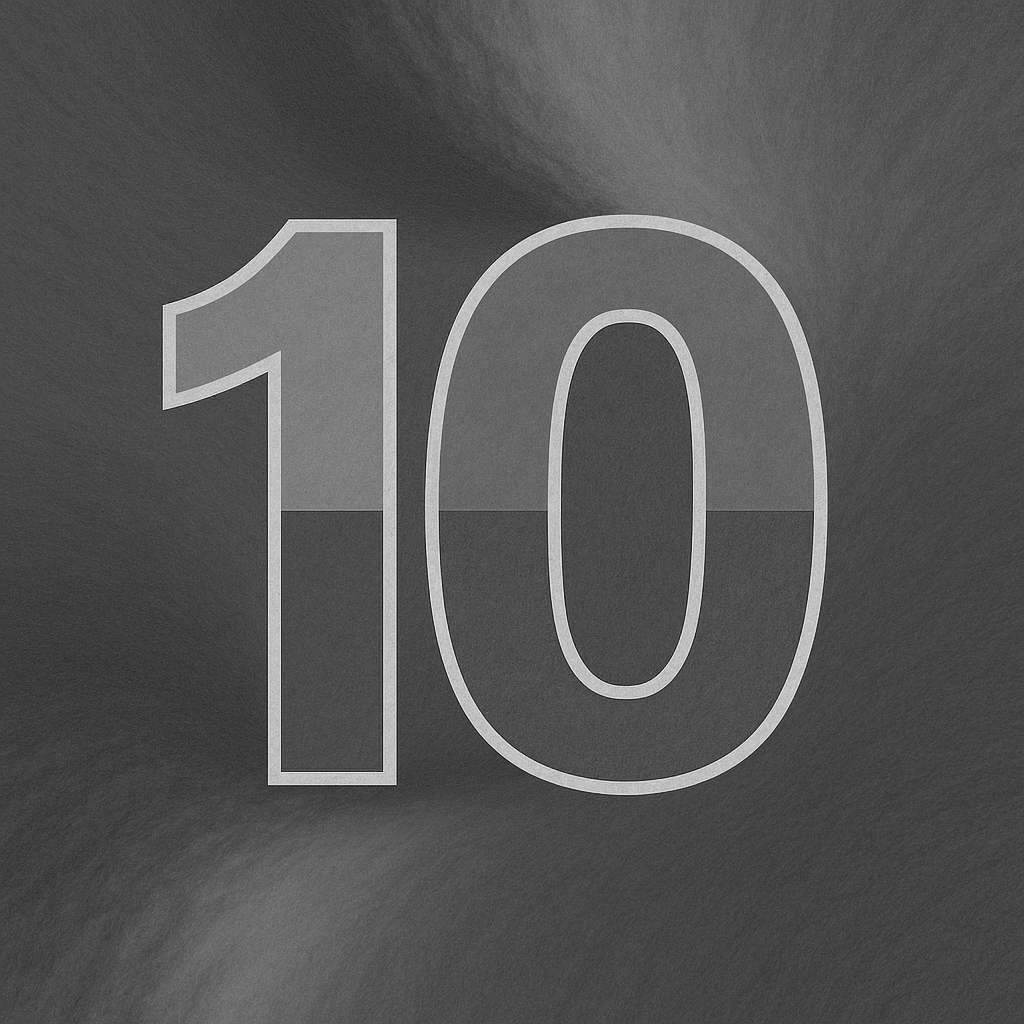

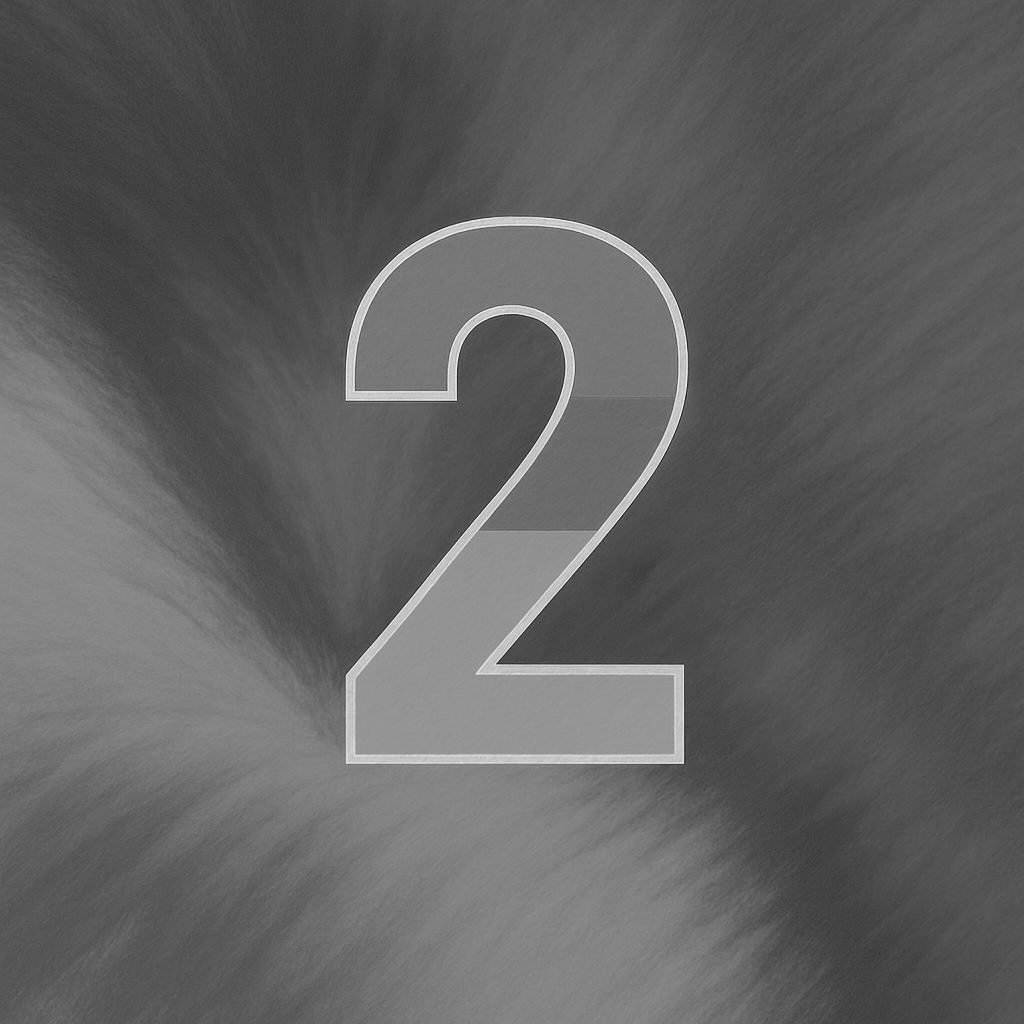

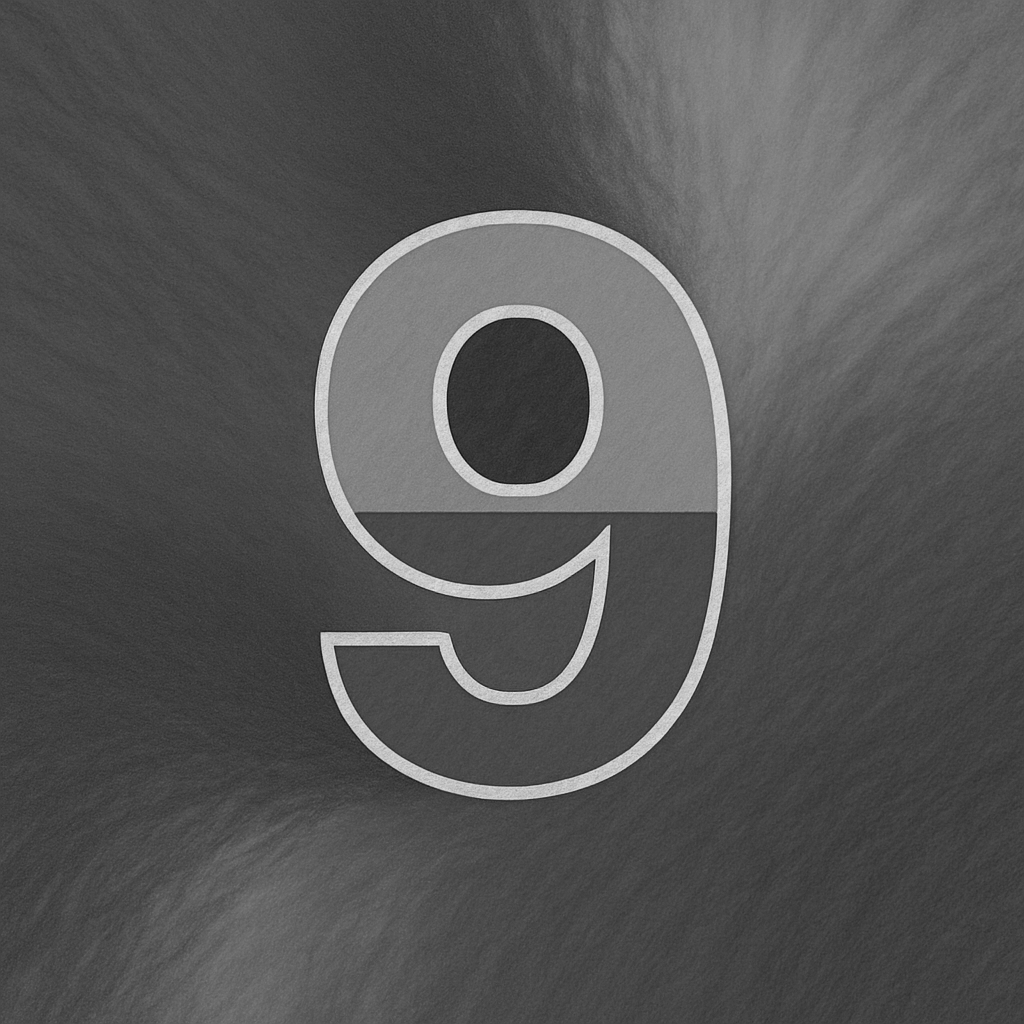

After fixing this line, the output images were correctly converted to grayscale!

[Aside] Truth Be Told

Interestingly, I actually caught this bug early—before running any tests.
Because I was rewriting the code manually (part of my learning process), I noticed the multiplication almost immediately.
When in doubt, I recommend rewriting a small program by hand.
If you can’t write it without understanding it, you don’t fully know it—just like with any language.

Key Learnings

  • CUDA kernels ran correctly—but logic errors can still ruin results.
  • Handling 2D textures in CUDA involves special memory structures and setup.
  • Once mastered, texture objects enable fast and cache-efficient image access.
  • Debugging manually can uncover mistakes even before you hit “Run.”
